Product Overview

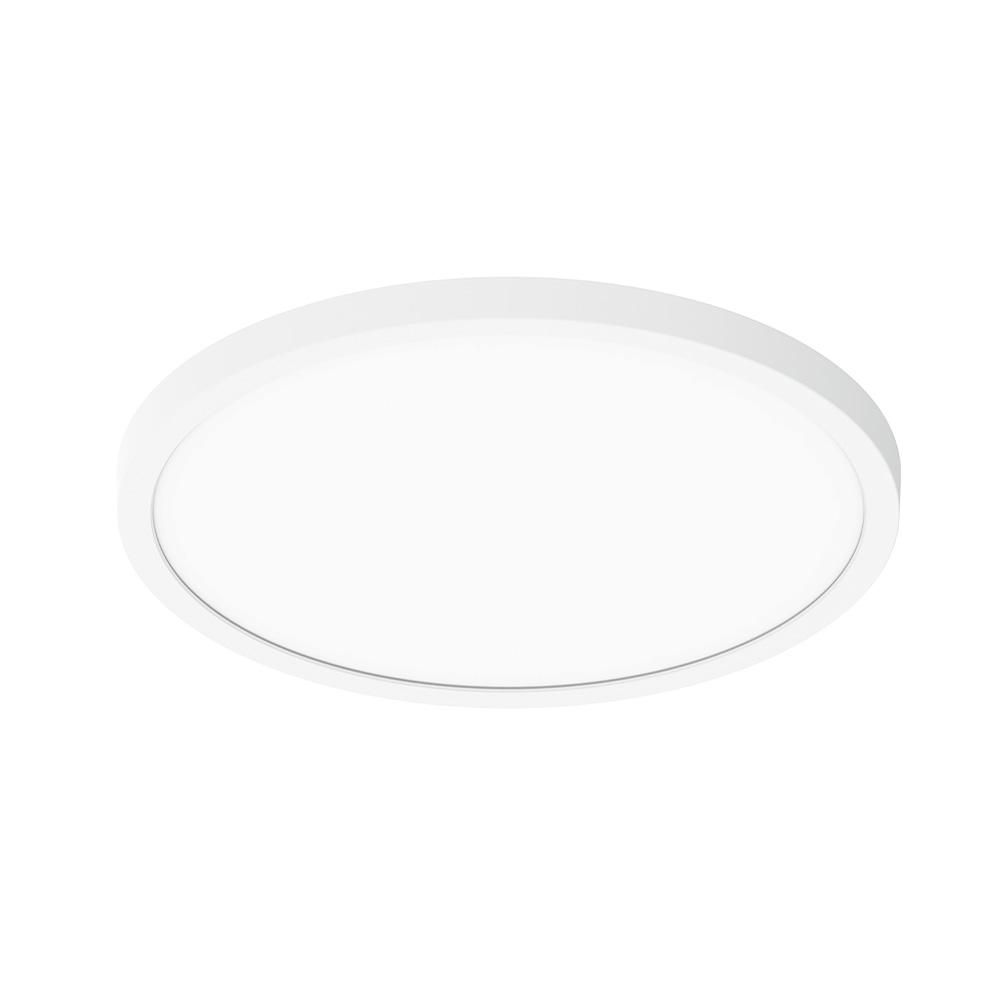

8" ELO LED luminaires are a thin 5/8" surface mounted luminaire two tunable switches; Selectable Lumens allows the end user
to determine the wattage input & Selectable CCT changes the color temperature appearance. Luminaires mounts easily over a standard or fire rated junction boxes.
Input Voltage: 120-277V
Lumens / Wattage: Selectable Lumens (1050lm / 10W; 1350lm / 13W; 1550lm / 16W)
Color Temperature: Selectable CCT (27K/30K/35K/40K/50K)
Color Rendering Index: 90+ CRI
Dimming: 0-10V
Finish: Matte Powder White
Listing: cETLus Listed for Wet Locations

Standard Information

Option:

Title 24

Refinement Options

Category:

Surface

Product Line:

LE88

Est. Shipping Wt.:

3

Length:

8.875

Lumens / Light Output:

Selectable Lumens (1050lm / 1350lm / 1550lm)

Ship Carton Height:

2.75

Ship Carton Length:

9.375

Ship Carton Width:

9.375

Weight:

1

CCT:

Selectable CCT (27K / 30K / 35K / 40K / 50K)

CEC Database:

Y

CEC Item Number:

NELOSW-8RTWMPW

CEC Substitute Item:

NELO-8RTWMPW

Contains Battery:

N

Country of Origin:

MYS

CRI:

90

DLC Listed:

No

Master Box H:

9

Master Box L:

20

Master Box Qty:

12

Master Box W:

20

Master Box Wt.:

17

Product Family:

8" ELO

Safety Listing:

cETLus

Wattage:

Selectable Wattage (10W / 13W / 16W)

1.4

Manufacturer Info

Manufactured By:

Nora
